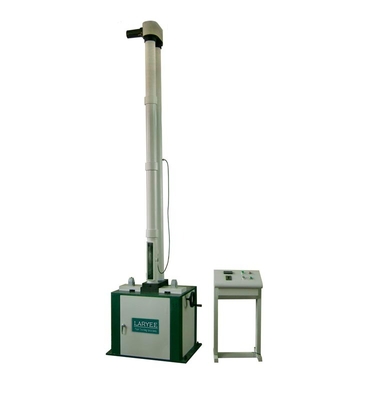

The PVC Sheet Falling Weight Impact Testing Instrument is widely used for the testing of impact strength test of plastic pipe materials and pipe components, and also suitable for the external loads impact strength test of plastic board, glass fiber reinforced plastic and kinds of Hard non-metal material. The machine can fulfill the test standard of ISO3127, ISO 4422, ISO 3633, EN744, EN 1411. It is an ideal instrument for quality inspection in construction industry, manufacture, chemical industry and university.
|
Maximum impact energy(j) |
300j |
|
Striker weight(kg) |
0.5,0.8,1.0,1.25,1.6,2.0,2.5, |
|
Drop hegight |
0-2000mm |
|
Hammer lift speed |
0-40mm/s |
|
Diameter of the specimen(mm) |
Φ10-Φ400mm,(OptionalΦ10-Φ630mm) |
|
Striker type |
D25,D90 |
|
Controller |
PLC |
|
Indicator |
LCD text |
|
Power supply |
1P-220V,50Hz/60Hz |
|
Dimension(mm) |
850×750×3550 |
|
Weight(kg) |
600kg |
