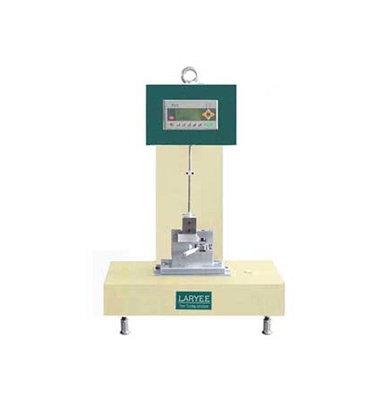

1.Multi Pendulums (big and small) and Multi scale reading which enlarges the test range of energy.
2. Sample and support are easy centering.
3. ZIT22xx series Pendulum impact is PLC and digital LCD indicate and control
4. According to ISO 180 test standards
|
Model |
ZIT2275 |
ZIT2222 |
|
Impact energy |
1J, 2.75J, (5.5J) |
5.5J, 11J, 22J |
|
Energy Accuracy |
1% |
1% |
|
Impact speed (m/S) |
3.5 |
3.5 |
|
Pendulum moment |
Pd1 = 0.53590Nm Pd2.75 = 1.47372Nm Pd5.5 = 2.94744Nm Pd11 = 5.8949Nm Pd22 = 11.7898Nm |
|
|
Distance between striking edge to upper surface of clamps |
22mm |
|
|
Raising angle |
150° |
150° |
|
Round angle radius of striking edge |
R=0.8mm |
R=0.8mm |
|
Sample span size(mm) |
10, 12.7 |
10, 12.7 |
|
Impact center distance (mm) |
335 |
335 |
|
Scale Reading |
0-1J Min. scale: 0.01J 0-2.75J Min.scale: 0.025J (0-5.5J Min. scale: 0.05J) |
0-5.5J Min. scale: 0.05J 0-11J Min. scale: 0.1J 0-22J Min. scale: 0.2J |
|
Dimension |
550×350×900 mm |
650 × 400 × 1100mm |
|
Weight(Kg) |
80kg |
95kg |
