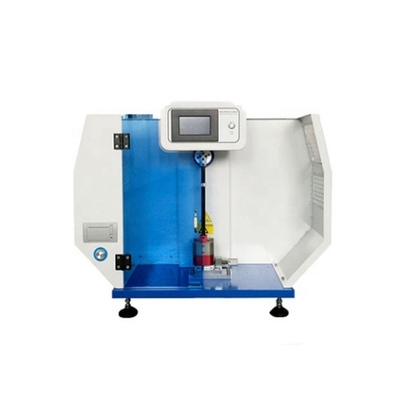

Color touch screen Charpy Izod impact tester
It is used for test engineering plastics, glass-steel, ceramics, casting stone, plastic wiring, insulating material, plastic pipe material and other non –metallic materials for anti- impact intensity.
The products satisfy the standard demands of ISO 179, ISO 180,GB/T 1043, GB/T 1843,ASTM D256,DIN53453,GB18743,ISO9854,DIN12608 and others. Each type has both electronic type and pointer type.
The electronic type adopts raster -display technique of measuring circle angle, with the characteristics of high precision, good stability and wide range of measuring, digital display of testing split strength, impact intensity,
fore-elevation, ascending angle, automatic correcting average value of one group for energy losing.
Standard:
1. GB/T 1043-93 Hard plastics charpy imoact testing method
2. GB/T 1843-1996 Plastics izod impact testing method
3. JB/T 8761-1998 Plastics izod impact testing machine
4. JB/T 8762-1998 Plastics charpy impact testing machine
5. ISO 179-1993(E) Plastics-measuring of charpy impact strength
6. ISO 180-1993(E) Plastics--measuring of izod impact strength
7. GB/T 18743-2002 Thermoplastic plastic pipe for fluid delivery charpy impact test method
8. ASTM D256 Plastics anti izod impact testing method
|
Impact speed |
2.9m / s or 3.8M / S |
|
Distance from pendulum center to sample center |
221mm, 380mm |
|
Pendulum angle |
150° |
|
Jaw support spacing |
40mm, 60mm, 70mm, 95mm |
|
Support blade corner radius |
R = 1mm |
|
Impact blade angle |
30 ° |
|
Impact blade fillet radius |
R = 2mm ± 0.5mm |
Specification
|
Model |
XJJ-5 |
XJJ-15 |
XJJ-50 |
|
Impact energy |
1J,2J,4J,5J |
7.5J,15J |
25J,50J |
|
Pendulum pre-elevation angle |
150° |
||
|
Impact speed |
2.9M/S |
3.8M/S |
|
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
